Unveiling the Potential of Phage Display Screening: Techniques, Applications, and Challenges

Introduction to Phage Display Screening

Phage display screening is an innovative and versatile technique that has become a cornerstone in the identification and characterization of novel binding molecules such as antibodies, peptides, and proteins. This approach utilizes bacteriophages to present a variety of proteins or peptides on their surfaces, making it an invaluable tool for drug discovery, diagnostics, and biotechnology applications. Researchers introduced phage display screening during the early 1990s to extract specific peptides or antibodies from extensive libraries. The method has transformed into a powerful instrument for protein–protein interaction identification as well as the discovery of new biomarkers and therapeutic antibodies development. Scientists use selection processes to isolate phages that bind specifically to target molecules. The combination of versatile libraries and high-throughput screening capabilities makes phage display the preferred approach for discovering functional ligands across research and industry settings.

Process of Phage Display Screening

Selection Cycles

The standard phage display screening method consists of several selection stages which are referred to as biopanning cycles. During these selection cycles phage libraries encounter the target while phages binding to it are isolated. Through repeated selection cycles phages that strongly bind to the target become enriched, which results in the production of the specific binding molecules needed.

• Incubation: Phage particles undergo incubation with a specific target such as immobilized protein, cell, or bead.
• Washing: The process of stringent washing eliminates non-specific binders.
• Elution: Target-bound phage particles undergo elution in the process.
• Amplification: Bound phages undergo amplification within bacterial hosts which expands the phage population for subsequent cycles.

The required selection cycles to identify specific binders depend on both the library diversity and the characteristics of the target along with the desired specificity of the binders. Enrichment of the phage population requires performing between 3 and 10 cycles.

Fig. 1 Schematic of an affinity-driven process in which phage-displayed libraries are screened against a variety of targets and target-specific phage-displayed (poly)peptides (e.g., novel cancer ligands) are subsequently identified.^{1, 4}

Biopanning Fundamentals

Biopanning functions as an essential part of phage display screening through which scientists select peptides or proteins that bind to specific targets from a phage library. The process depends on the specific binding between the displayed peptide or protein and the target molecule on the phage surface. Multiple factors determine biopanning success such as the diversity of the library alongside properties of the target and washing conditions that remove non-specific binders.

The biopanning process includes different methods such as solid-phase biopanning, solution-phase biopanning and cell-based panning which each cater to specific target types.

Screening Methodologies

The selection of phage display screening methods varies based on library characteristics and target nature.

• Affinity-based screening: The affinity-based screening method determines optimal binders through their binding strength to the target.
• Competitive screening: The competitive screening method applies a competitive binding assay to detect phages that manage to bind to targets when a competitor is present.
• Counter-selection: Counter-selection removes non-specific binders through the application of a secondary or irrelevant target.

The selection of a screening methodology relies on the desired outcome because each method possesses specific pros and cons.

Selection Strategies

The effectiveness of phage display screening relies heavily on appropriate selection strategies.

• Library composition: The library should hold an adequate variety of peptides or proteins.
• Target preparation: The target must be prepared in a format that facilitates successful interaction with the phage library.
• Stringency of washing: Appropriate washing conditions should remove non-specific interactions without affecting strong binding events.

Optimization strategies for selection cycles involve adjusting parameters including the cycle count, incubation period, and target concentration.

Biopanning Techniques

In Vivo Phage Library Screening

The process of in vivo phage library screening utilizes living organisms such as bacteria to grow and choose phages within a living host. Researchers utilize this method to investigate interactions between proteins and cells which becomes essential when validating binding interactions in specific cellular or tissue environments.

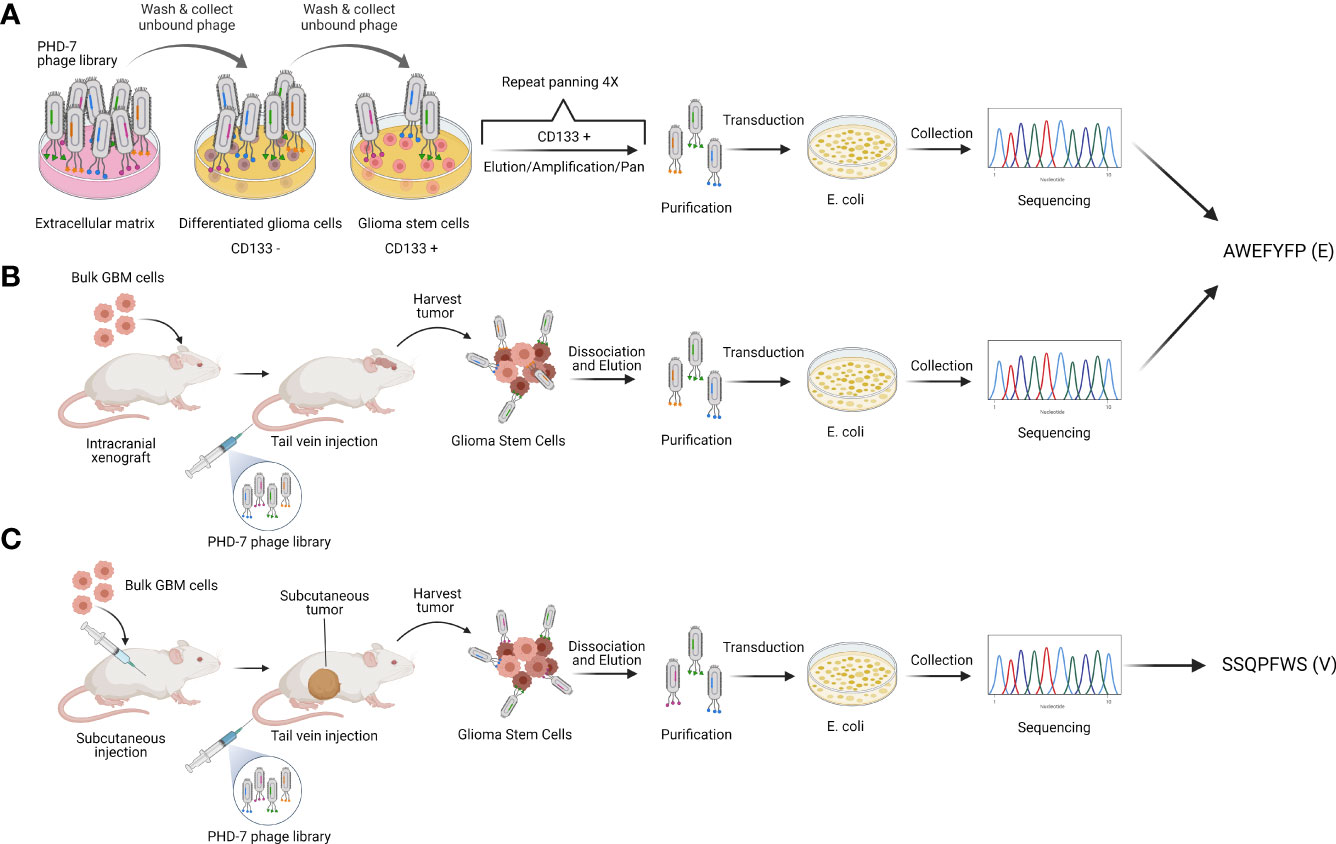

Fig. 2 Peptide selection. Schematic representation of phage display strategies used to isolate the GSC-targeting peptides E (AWEFYFP) and V (SSQPFWS). ^{2, 4}

Ex Vivo Phage Library Screening

Ex vivo screening examines molecular interactions outside of living organisms by using tissue or organ slices to create a controlled research environment. The technique serves well for target validation and interaction studies which need an environment more specific than what in vitro assays offer.

Solution-Phase Panning

During solution-phase panning scientists incubate a phage library in solution with their target of interest and then separate the phages which have bound to the target from those which have not. The method proves effective when selecting small peptides or soluble proteins.

Solid-Phase Biopanning

During solid-phase biopanning, scientists immobilize the target molecule onto solid materials like microplates or beads. After incubating the phage library with the immobilized target scientists wash the system to retrieve the phages that have attached themselves to the target. The solid-phase panning method excels at identifying binding agents for large proteins, membrane proteins or antigens.

Cell-Based Panning

The application of cell-based panning becomes necessary when researchers aim to target living cells or tissues in their study. The technique enables researchers to identify phages that attach to cell surface receptors and particular cellular environments. Researchers commonly use cell-based panning in both cell biology research and drug discovery processes.

Whole Cell Panning

The whole cell panning technique uses complete cells to isolate phages that attach selectively to cell surface markers or molecules associated with cells. Researchers benefit from this technique because it enables examination of cell-surface proteins and receptors within a setting that closely resembles natural physiological conditions.

Negative Selection

Negative selection methods help eliminate phages that bind non-specifically from the phage library. The process employs a secondary target or competitor molecule to remove phages that attach to unwanted targets or demonstrate non-specific binding. The negative selection procedure results in a collection of phages that predominantly show high-affinity binding to specific targets.

Phage Display Library Types and Selection

Antibody Phage Display Libraries

Antibody phage display libraries comprise bacteriophages which exhibit several antibody fragments including scFv, Fab, and Fv. The libraries find broad application in both therapy and diagnostics to identify monoclonal antibodies targeting multiple different antigens. The antibody phage display libraries contain human, mouse, and camelid antibodies as common displays.

Peptide Display Libraries

Peptide display libraries include phages which present peptides on their external surfaces. Researchers use these libraries to detect peptide sequences which attach to particular proteins or cell surface receptors. Researchers utilize peptide libraries to find new drugs and vaccines and to discover biomarkers.

Human Antibody Libraries

Human antibody libraries contain specialized antibody collections which originate from human biological sources. These antibody libraries function as resources to discover antibodies that originate from humans for use in medical treatments. Therapeutic settings benefit immensely from human antibodies because they show reduced potential to trigger immune responses.

Selection Process for Different Libraries

Different types of libraries each have unique selection processes. Antibody libraries typically require affinity maturation and diversification while peptide libraries need adjustments in both peptide length and structure. Targeted selection and screening methods lead to human antibody libraries producing antibodies with necessary specificity and therapeutic potential.

Table 1. Summary of different library types, components, applications, and the selection processes.

Challenges in Phage Display Screening

Identifying Specific vs. Non-Specific Binders

Phage display screening faces the significant obstacle of telling apart specific binders from non-specific binders. High surface density of phage particles causes non-specific binding which results in background noise. The challenge can be overcome by implementing strict washing conditions and negative selection techniques along with optimized selection cycles.

Overcoming Limitations in Protein Availability

The amount of available protein constitutes a limiting variable within phage display screening processes. Membrane proteins and larger protein complexes present significant obstacles for expression and purification processes. Although expression systems and protein engineering enhancements have resolved several production limitations, the availability of proteins continues to hinder specific applications.

Improvements in Screening Efficiency

The latest enhancements in phage display technology center around increasing screening efficiency. High-throughput screening systems development together with microfluidic device utilization and automation platforms accelerate procedures while minimizing expenses. These technological advancements have greatly improved the capability to conduct extensive screenings with high efficiency.

Fig. 3 Functionalization and modification of microplate with different metal ions for biopanning procedure.^3,4
