Bioconjugation

Chemical Conjugation

Chemical conjugation permits the covalent connection of various chemical molecules to biological macromolecules to achieve specific modifications. This process typically involves crosslinking agents, which possess at least two reactive groups, facilitating the coupling of the desired chemical entity to the target biomolecule (e.g., proteins, antibodies, and nucleic acids). The choice of functional groups on biomolecules, including thiol (-SH), primary amine (-NH2), carboxylic acid (-COOH), and aldehyde (-COH), plays a crucial role in determining the conjugation strategy. Additionally, the non-selective conjugation method utilizing photoreactive groups is another approach for biomolecular modification.

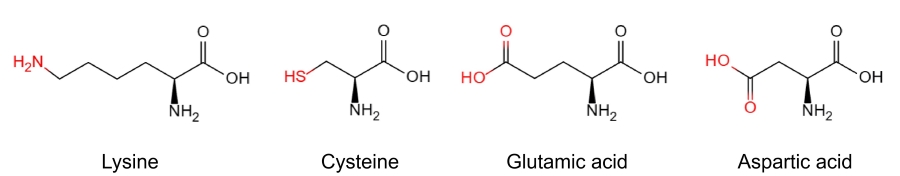

Fig.1 Amino acids for bioconjugation. (Creative Biolabs Original) Fig.1 Common amino acid groups used as targets for bioconjugation.

Optical Imaging Thiol-based Conjugation

The thiol groups in the cysteine side chains can undergo oxidation to form covalent disulfide bridges, which contribute to the secondary and tertiary structures of proteins. During protein conjugation reactions, these disulfide bonds must often be reduced to their free sulfhydryl forms to facilitate the desired chemical modifications. Commonly employed strategies for cysteine-based protein modification include Michael addition reactions with maleimide or vinyl sulfone moieties, disulfide exchange reactions, and alkylation reactions.

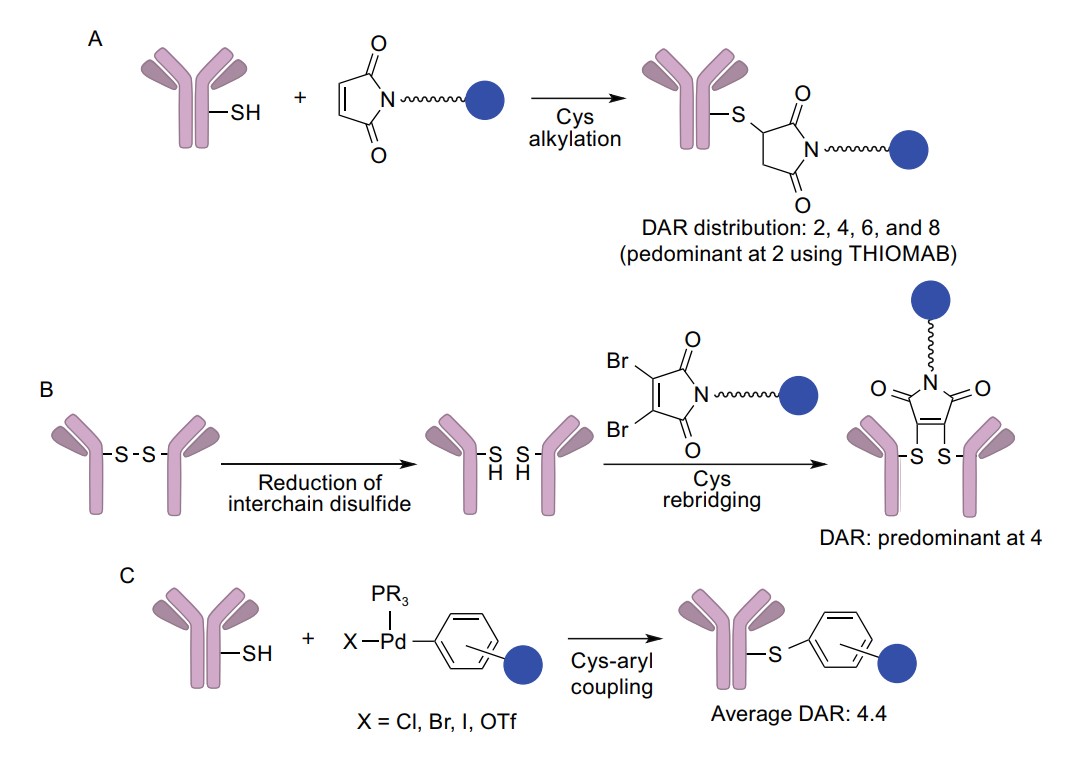

Fig.2 Conjugation strategies for cysteine. (Tsuchikama & An, 2018) Fig.2 Cysteine coupling.1, 2

Optical Imaging Amine-based Conjugation

Polypeptide chains typically contain two types of primary amines, including the α-amino group at the N-terminus and the ε-amino group in the lysine side chain. These positively charged amines are typically located on the outer surface of proteins, facilitating various chemical conjugation reactions without significantly altering the protein structure. A wide range of reactive groups, such as N-hydroxysuccinimide esters (the most commonly used), isothiocyanates, isocyanates, sulfonyl chlorides, epoxides, imide esters, and fluorophenyl esters, are commonly employed to target these primary amines. The conjugation reactions mediated by these reactive groups primarily involve two pathways: acylation or alkylation.

Optical Imaging Carboxylic Acid-based Conjugation

Carboxylic acids are found at the C-terminus and within the side chains of aspartic acid and glutamic acid in polypeptide chains. Similar to primary amines, carboxyl groups are usually located on the surface of protein structures. Carboxylic acids are reactive towards carbodiimide (EDC) and dicyclohexylcarbodiimide (DCC).

Optical Imaging Aldehyde-based Conjugation

Aldehydes play an important role in the chemical modification of target macromolecules, such as proteins and polysaccharides. While aldehydes are not naturally present in these biomolecules, they can be generated through selective oxidation processes, such as the use of sodium periodate to oxidize vicinal diols within polysaccharide chains. The resulting aldehydes then serve as reactive sites for the attachment of hydrazide or alkoxyamine moieties. Furthermore, the aldehyde group can undergo Schiff base formation with primary amines, further reduced by sodium borohydride or sodium cyanoborohydride to form a stable imine bond.

Optical Imaging Photoreactive Conjugation

The small molecule compounds containing photoreactive groups can covalently bind to biological macromolecules induced by UV light. Photoreactive crosslinkers are widely used for non-specific conjugation. The most commonly employed photoreactive moieties are aromatic azides and bisacridines, which undergo photochemical transformations to generate highly reactive intermediates. These intermediates turn initiate addition reactions to double bonds, insertion into C-H and N-H sites, or subsequent ring expansion to react with nucleophiles (e.g., primary amines).

Optical Imaging Chemoselective Conjugation

The reactions of chemoselective conjugation involve the specific pairing of unique reactive groups, offering a remarkable degree of selectivity and minimal background interference in complex biological systems. Two prominent examples are the "Click" reaction of azide-alkynes and the Staudinger reaction of azide-phosphines, which are often used for in vivo metabolic labeling.

As a renowned provider in the field of bioconjugation, Creative Biolabs offers a diverse selection of crosslinkers featuring diverse reactive groups. This comprehensive portfolio enables our customers to address a wide range of research requirements effectively. Furthermore, we offer custom conjugation services for an array of biomolecules, including proteins, nucleic acids, and oligosaccharides. Please contact us for more information.

References

  1. Tsuchikama, Kyoji, and Zhiqiang An. "Antibody-drug conjugates: recent advances in conjugation and linker chemistries." Protein & cell 9.1 (2018): 33-46.
  2. Distributed under Open Access license CC BY 4.0, without modification.
