Sludge Activity Analysis Service

Efficient Activity Analysis Services in Sludge Samples at Creative Biolabs

Sludge activity analysis is a test method used to evaluate the level of microbial activity in sediment or sludge during wastewater treatment processes, which is typically performed in anaerobic digestion systems. Evaluating microbial activity levels in sludge helps monitor system operation, optimize treatment efficiency, adjust operating parameters to increase biogas production, and maintain system stability. Creative Biolabs has an experienced and professional technical team, including experts in microbiology, chemical analysis, and other fields. We conduct accurate and reliable sludge activity analysis services. In addition, we also provide Sludge Granule Size Analysis and Continuous Anaerobic Digestion Analysis services.

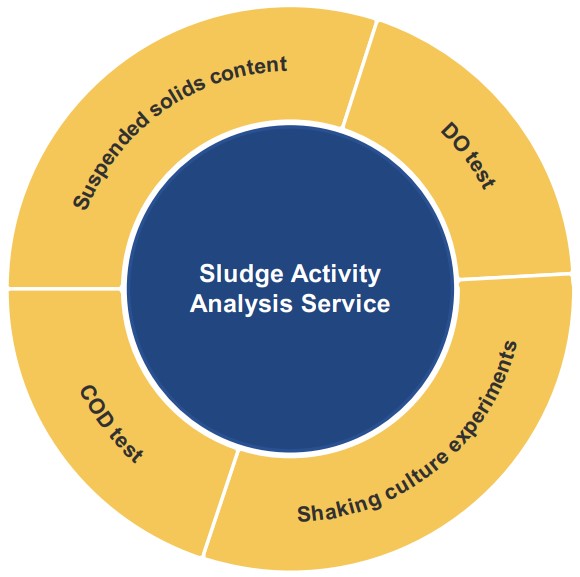

We collect representative sludge samples from the anaerobic digestion system and perform activity analysis on them, mainly including the following:

• Sludge suspended solids content test

We first mix the collected sludge samples, then separate the suspended solids by filtration and dry them in an oven to a constant mass. Finally, the suspended solids content is calculated by weighing. This helps estimate the total suspended solids in the sludge, providing important information for wastewater treatment and sludge management.

• The dissolved oxygen (DO) test

We place the sample in a closed container and measure the initial dissolved oxygen level. The sample is then brought into contact with air by appropriate stirring or shaking. And regularly take samples to detect dissolved oxygen levels and record changes to evaluate microbial aerobicity and activity levels.

• Shaking culture experiments

We mix sludge samples with appropriate media to simulate microbial activity under good anaerobic digestion conditions. The mixed sample is then placed in a constant-temperature shaking incubator for continuous culture, and the degradation rate of the substrate by the microorganisms under different environmental conditions is regularly monitored to further determine its activity level.

• Chemical Oxygen Demand (COD) test

Measuring the COD value helps evaluate the organic content in the sludge. We mix the prepared water sample and the reaction reagent containing the oxidizing agent to perform a chemical oxidation reaction under heating conditions. After the reaction is complete, the change in unreacted oxidant concentration is measured using a spectrophotometer to determine the amount of organic matter in the water sample, usually reported in milligrams per liter (mg/L). This test is an important indicator for assessing the concentration of organic pollutants in wastewater and is a key parameter used to monitor water quality and efficiency of wastewater treatment processes.

Providing sludge activity analysis services is crucial in anaerobic digestion. Creative Biolabs has a comprehensive Anaerobic Digestion analysis platform. Our advanced experimental equipment and analytical instruments can support various substance activity analyses and Organic Matter Analyses. If you need to better understand the activity levels of microorganisms in your anaerobic digestion system, please contact us and we will provide you with customized analysis services according to your project needs.

Published data

Sludge generated from wastewater treatment plants is one of the main sources of odorous compounds. During the treatment of sludge, the emission of volatile sulfur compounds (VSC) increases with the increase of temperature and the decrease of sludge oxygenation. VSC is the main cause of odor pollution in wastewater treatment plants. These odorous substances harm the environment and ecosystems, so further treatment of sludge is very necessary. The common method of sludge treatment is stabilization of sludge. The stabilization process can reduce the amount of environmentally harmful organic matter in sludge, including odorous compounds. In this study, the authors used a flux hood combined with proton transfer reaction mass spectrometry (PTR-MS) to analyze the emission of volatile organic compounds in stabilized sludge samples. These data can help evaluate the potential application of stabilized sludge in agriculture or other aspects. First, the authors enclosed the sludge sample in a flux hood chamber, which was used to measure the emission of volatile pollutants, and then stirred the sludge to ensure a uniform surface. Before testing, the sludge sample was purged and flushed with a high-purity inert gas (nitrogen). PTR-MS was then used to directly measure the volatile organic compounds released from the sludge samples. Through this analysis process, the authors detected changes in the concentrations of 17 odor compounds released from the sludge samples. The results showed that sulfur-containing compounds such as dimethyl sulfide and ethyl mercaptan were the main sources of odor. This study demonstrated that PTR-MS technology can monitor volatile compounds in sludge samples more directly, quickly, and with high sensitivity, and has broad application prospects.

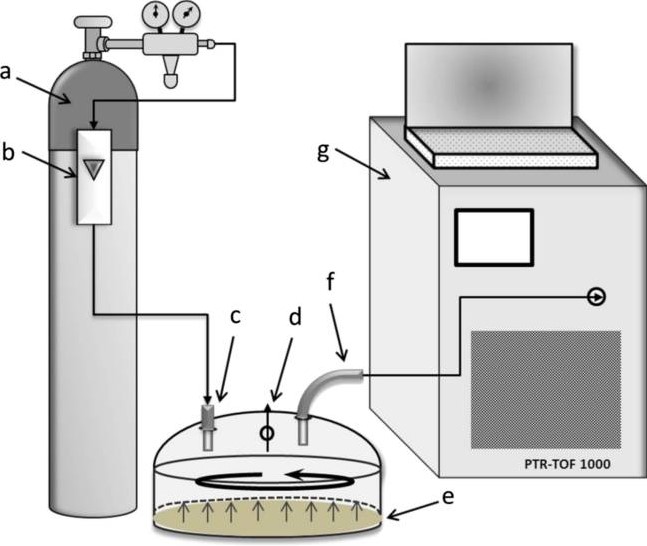

Fig.1 Schematic diagram of the flux hood chamber combined with PTR-MS.^{1, 2}

FAQs

Q1: Is your activity analysis method suitable for different types of sludge?

A1: Our activity analysis methods are generally applicable to various types of anaerobic digestion sludge, but for specific types of sludge, we can develop custom analysis plans according to your specific sample characteristics. Please provide detailed information about your sludge such as source, treatment process, etc. so that we provide you with the best solution.

Q2: How can the activity analysis results you provide help me optimize the efficiency of my anaerobic digestion system?

A2: Our activity analysis results will provide important information about the level of microbial activity in the sludge and the degradation of organic matter. Based on these data, we tailor improvement suggestions for you to help you optimize the anaerobic digestion process and improve sludge treatment efficiency.

Q3: What is the lead time for activity analysis reports? What does your report cover?

A3: Our activity analysis reports are typically delivered within a few business days of completion of the analysis. The report content includes sample information, analysis methods, result data, data analysis and improvement suggestions, etc. We'll make sure the report is clear so you can fully understand and act on the results.

Customer Review

References

1. Byliński, Hubert, et al. "Monitoring of odors emitted from stabilized dewatered sludge subjected to aging using proton transfer reaction–mass spectrometry." Environmental Science and Pollution Research 26 (2019): 5500-5513.
2. Under Open Access license CC BY 4.0, without modification.
